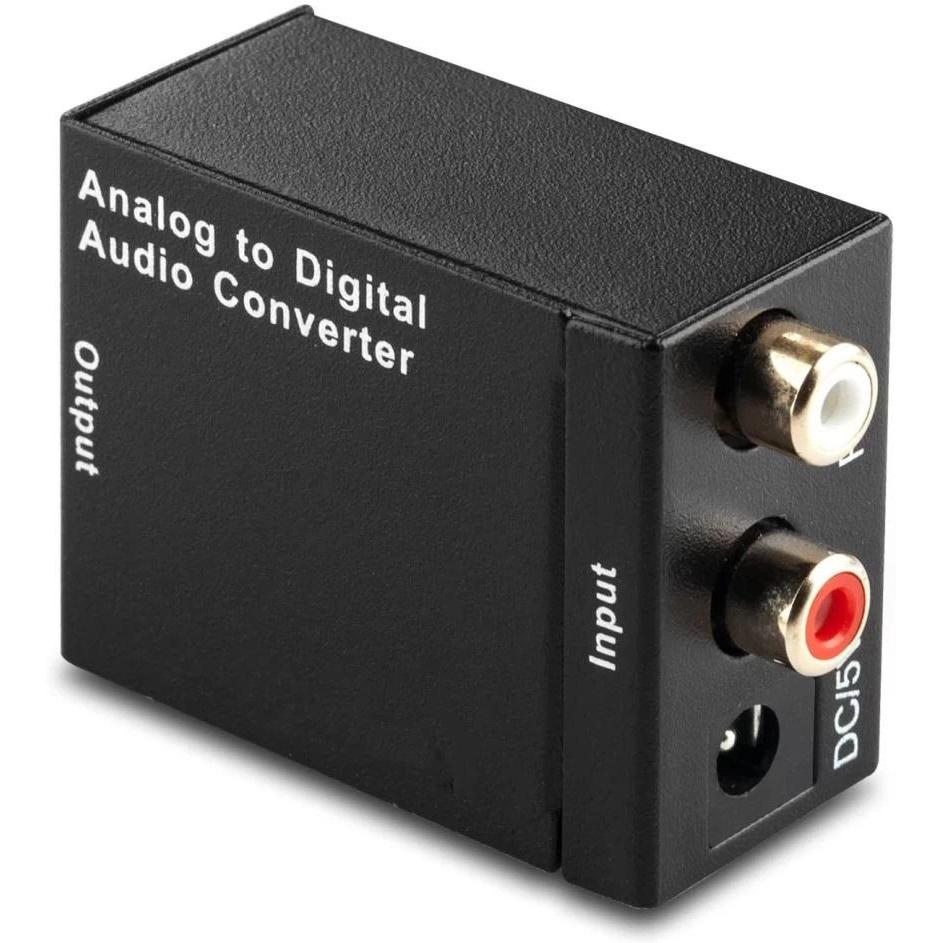

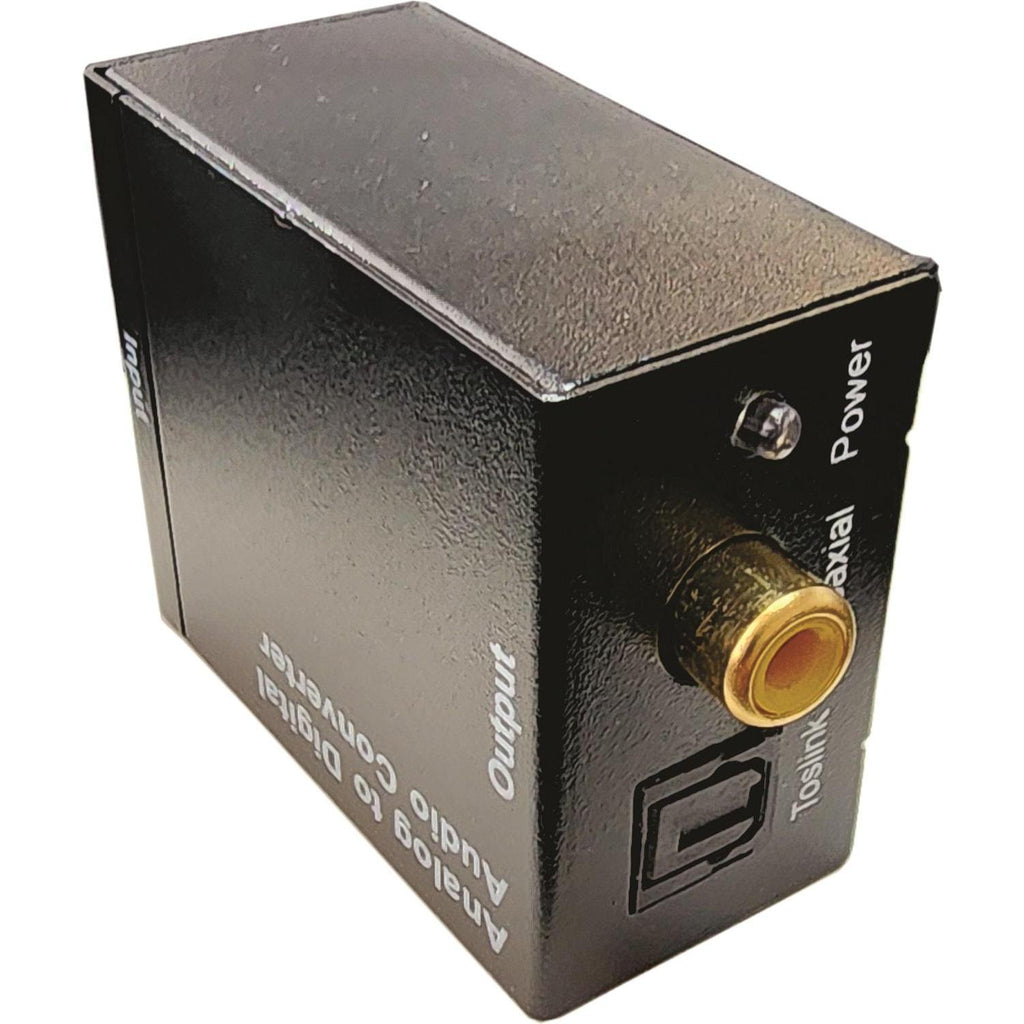

ANALOG TO DIGITAL AUDIO CONVERTER

ANALOG TO DIGITAL AUDIO CONVERTER - AD010

Signal Inputs/Output

Input Audio_ L/R Audio (Stereo)

Output Audio_ Coaxial and Toslink Digital Audio Connector

Input Audio Connector_ 2XRCA(R/L) (Stereo)

Output Audio Connector_ Toslink1XRCA(Coaxial)

Sampling Rate_48KHz

Size(L-W-H):51X41X26MM

Environmental

Operating Temperature_0 to +70

Operating Humidity_10% to 85 % RH (no condensation)

Storage Temperature_ -10 to +80

Storage Humidity_5% to 90 % RH (no condensation)

Power Requirement

External Power Supply_ 5V DC@1A

Power Consumption_1 watt (max)

Converter Unit_ FCC, CE, UL

Power Supply_ UL, CE, FCC

Accessories Adapter

AC Power Adapter_ US standard, UK standard and so on

User Manual_ English Version

5.0 CONNECTION AND OPERATION

Before Installation, please make sure all Devices you wish to Connect have been turned off

Connect the Audio source Device to the Converter using appropriate L/R Cables

Connect the A/V Receivers or Amplifiers to the Converter using appropriate Toslink or Coaxial Cables

Insert the DC side of 5V Power Supply into the Converter and then Connect the AC side of the Power Supply into the wall outlet

Note: When Connected to the Toslink and Coaxial Cables at the same, the Product will give Toslink and Coaxial Output at same time

PACKAGE CONTENTS

Main unit (Analog to Digital Audio Converter)

5V/DC Power Supply

User’s Manual

Weight (Net):78g

Warranty

Limited Warranty:1 Year

https://www.micropointsa.co.za/assets/documents/ad010/user-manual/user-manual.doc
