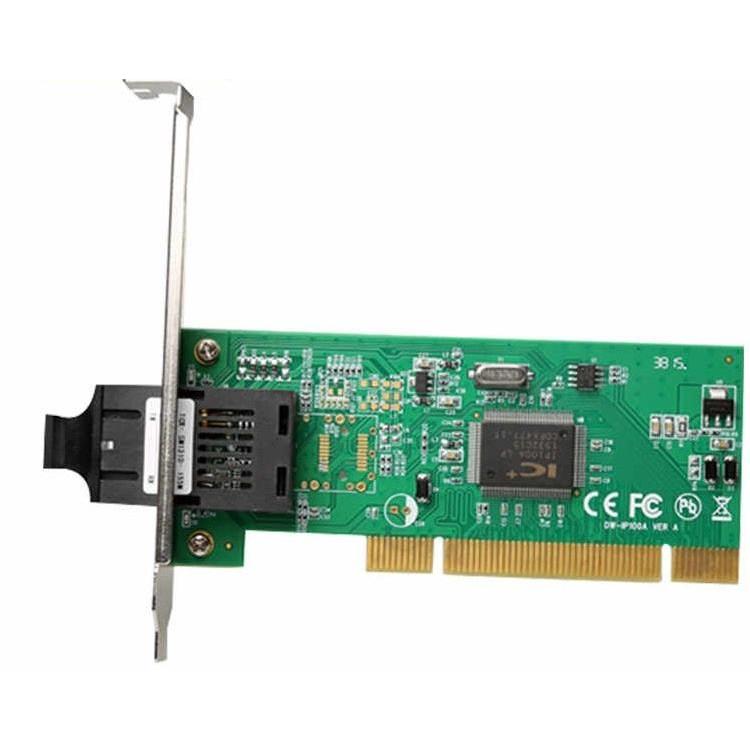

PCI FIBRE CARD 100MBPS T1310

PCI FIRE CARD - TXA025

Model number_ TXA025

Chipset:  ICplus IP100A Ethernet Controller

Port number_ 2 x SC or 1 x SC

Standard:  IEEE 802.3, IEEE 802.3u,IEEE 802.3x,IEEE 802.1p

Data rate_ 10/100Mbps

Transmission distance: 20 km

Interface: PCI

LED: Indicator 10/100Mb(Link/Act)

Dimension: 120 x 51 x 13.8mm

Support OS

Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server  2012, 2008 R2, 2003(32/64)

Mac OS® 10.x (Intel based, tested up to 10.9)

Linux 2.4.x and later (Tested up to 3.5)

Environment

Operating Temperature_ 0 ?-70 ?

Relative Humidity_ 10%-90%(non-condensing)

Storage Temperature_ -0?-80?

Relative Humidity_ 5%-90%(non-condensing)

Other Functions_ WOL

Support PXE

Features:

Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller

IEEE 802.3 compliant 100BASE-TX/100BASE-FX/10BSE-T

PCI Bus master scatter/gather DMA on any byte boundary

Full operation with PCI Clock from 25 MHz to 33 MHz

PCI Revision 2.2 compliant

On-chip transmit and receive FIFO buffers

On-chip LED drivers

Power management capabilities for ACPI 1.0 compliant systems

Wake On LAN support

Management statistics gathering

IP multicast receive and filter support using 64 bit hash table

Transmit polling

Auto pad insertion for short packets

Programmable minimum Inter Packet Gap

Programmable transmit and receive FIFO watermarks

Smart Cable Analyzer (SCA) Support

Capable of using 93C46 or 93C56 EEPROM

On-chip crystal oscillator

On-chip voltage regulator

2.5/3.3V CMOS with 5V tolerant I/O

0.25µm technology

128-pin PQFP
