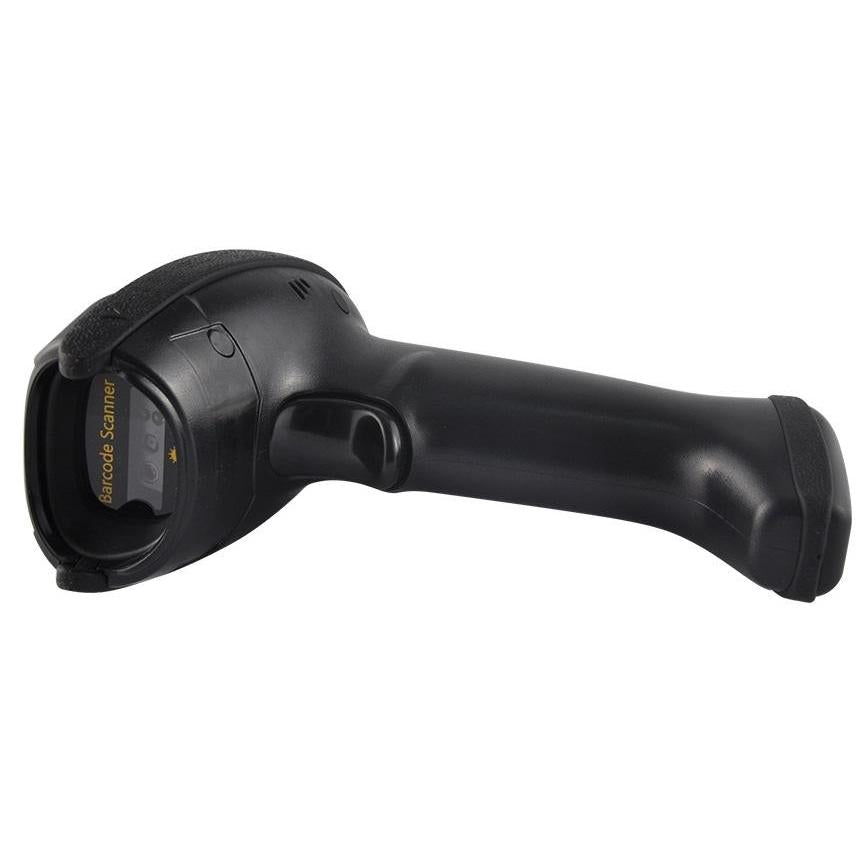

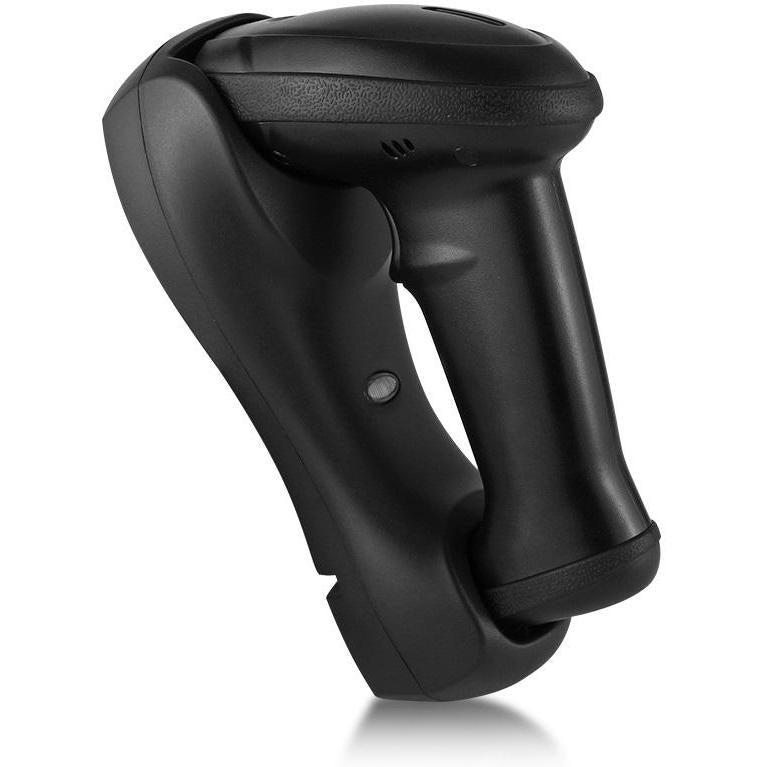

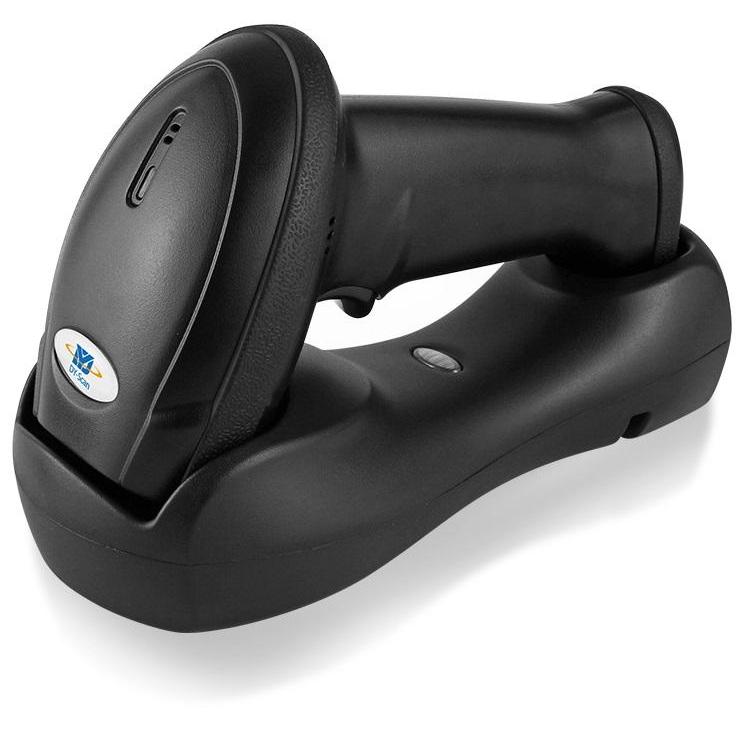

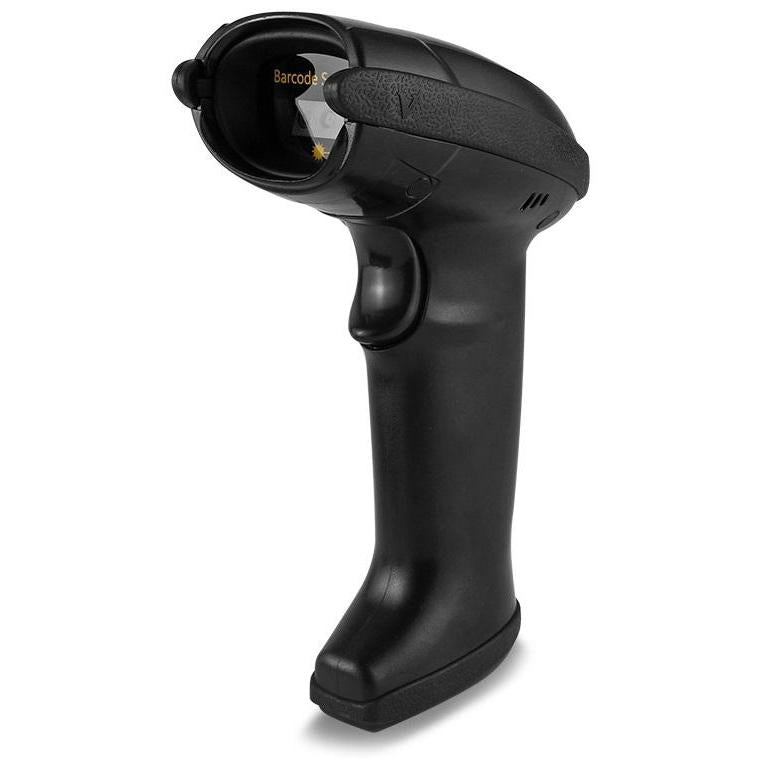

2D WIRELESS BARCODE SCANNER WITH STAND

DY BARCODE SCANNER - DS6202B

Product Description

DS6202 is a high-performance 2D barcode scanner with leading CMOS image recognition technology

It can easily read the paper, goods, screen and other media barcodes

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment

Express delivery, inventory management, food traceability, asset inventory, etc

Features

Ergonomic design, comfortable using

Read all the mainstream 1D & 2Dcodes in the market easily

High-performance processor, fast decoding (3mil)

Support interface_ USB

Support multiple languages and systems

Interface: USB, Wireless 2.4G Bluetooth

Long tramission distance, intelligent automatic connection when its beyond range

Not manual setting

Widely used in  supermarket, warehouse, mobile payment, chain stores

Application

Supermarket

Warehouse

Mobile payment

 Retail chain

Courier

Health care

Cable Interface DS6202B scanner must be connected with terminals, PC host, POS and Android host etc.

Performance

Scan Type: CMOS

Light Source: Red light LED 625nm (aiming & Illumination )

CPU: 32-bit

Resolution: 4mil

Decoding speed_ 35CM/S

Depth Of Field_  35mm-500mm

Scan Mode_ Manual, Auto sense

Scan Angle_ Roll360 ,Pitch±60 ,Skew±55 (PCS90%, Code 39,10mil / 0.25mm)

Print Contrast Signal: 20%

Ambient Light: Dark environment , indoor natural light

Wireless communication mode_ Synchronization , storage

Wireless transmission distance_ 2.4GHz 100m, Bluetooth 30m,(Open distance)

Storage 350Kb_(over 20,000 Product code)

Battery capacity: 2200mAh

Battery charging time: About 7 h

Continuous working time: 15 h

Symbologies: 1D_UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39,Code 32

Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5

(Straight 2 of 5) Codabar (NW-7),  MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc

2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, Maxicode etc

Physical Parameter

Weight: 205g(scanner), 230g(base)(without cable)

Dimension: L175mm x W72mm x H100mm

L200mm * W90mm * H51mm(Communication base)

Interface Type_ USB

Communication: USB, Wireless 2.4G, Bluetooth

Power Supply: DC 5V@180mA(work)

Environmental

Operating Temperature_ 20 to 50

Storage Temperature: 20 to 60

Humidity: 5% to 95%(non-condensing)

Drop Height: 1.8m

Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp

 High Temp. 60

Low Temp. -20

Transport Vibration Test: 10H@125RPM

Accessories List

Cable: USB, connect the scanner to a host device and charging

Communication : Used to receive and transmit scanner data

https://www.micropointsa.co.za/assets/documents/ds6202b/datasheet/ds6202b.pdf
