8 CHANNEL WIRELESS NVR

8 CHANNEL WIRELESS NVR - E-XS5

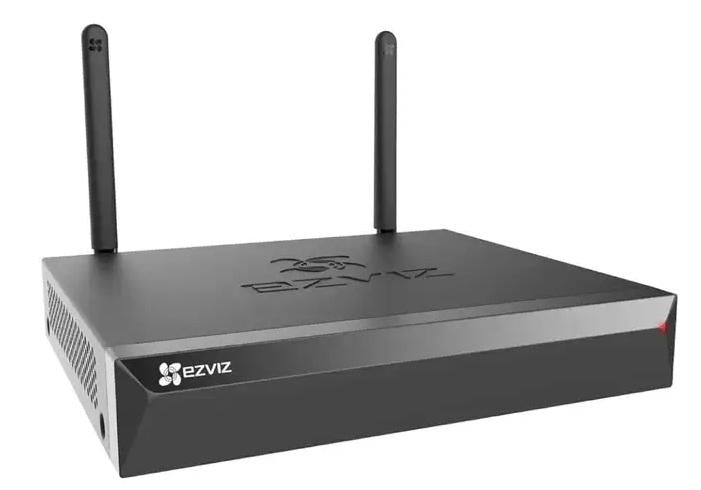

Ezviz X5S Wireless NVR with HDMI & VGA Outputs

Reliable, Easy Storage For Your Security System

Specifications

Model: CS-X5S-R100-8W

IPC Access Capability

Wireless/Wired IPC Access Capability: 3K  x 8

Wired IPC Access Capability: 3K  x 8 (X5S-8W)

Network Parameters

Antenna Number: 2

Max Wireless Range_ 100m

Radio Frequency: 2.4G

Ethernet Port: One 10/100M Adaptable Ethernet Interface

Required Access Bandwidth:50 Mbps/100 Mbps

Video Output

VGA: 1 Channel (Identical to HDMI Output) Resolution up to 1920  x 1080/60Hz

HDMI: 1 Channel Resolution up to 2592 x 1944/30HZ

Audio/Video Codec

Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

Video Encoding_ H.265, H.264

Decode Playback: Supports 8 x 3K

Video Recording Management

Video Recording Mode_  Manual Video Recording; Motion Detection Recording

Scheduled Video Recording; Event Triggered Recording

Backup Mode: Hard Disk backup, Internet Application Backup

Playback Mode: Instant Playback ; Normal Playback; Event Playback

Tag Playback; Log Event Playback

Open Protocol

Open Protocol Support HIKVISION, ONVIF (V.2.5)

HDD

Interface Type_ One Built-In SATA Port

Capability: Supports 1TB to 8TB 3.5 Inch HDD

External Interface

Audio Input/ Output: Not Support

Hardware Reset: Supports

USB2.0 Interface: 2

Dimensions

Product Dimensions: 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

Packaging Dimensions: 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

Power Supply

DC: 12V/1.5A

Consumption

Standby Status: =8W

Weight

Net Weight: 932 g

In The Box

X5S NVR × 1

Power Adapter × 1

Mouse × 1

Screw Kit × 1

Regulatory Information × 2

Quick Start Guide × 1

Certifications: CE / UL / RoHS / WEEE / REACH
