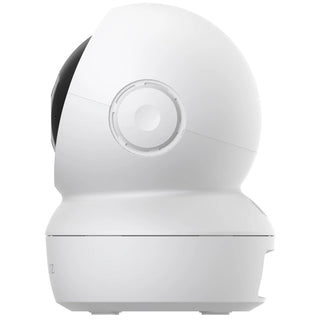

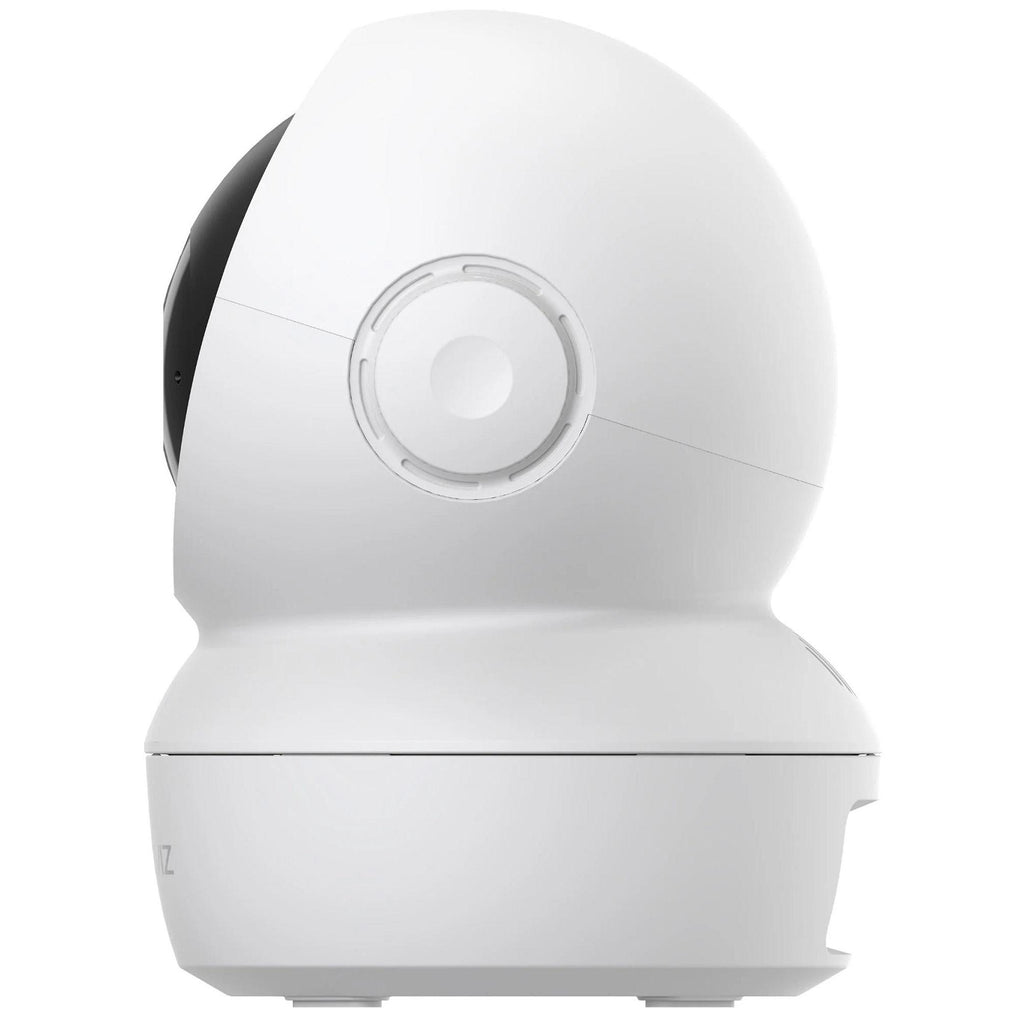

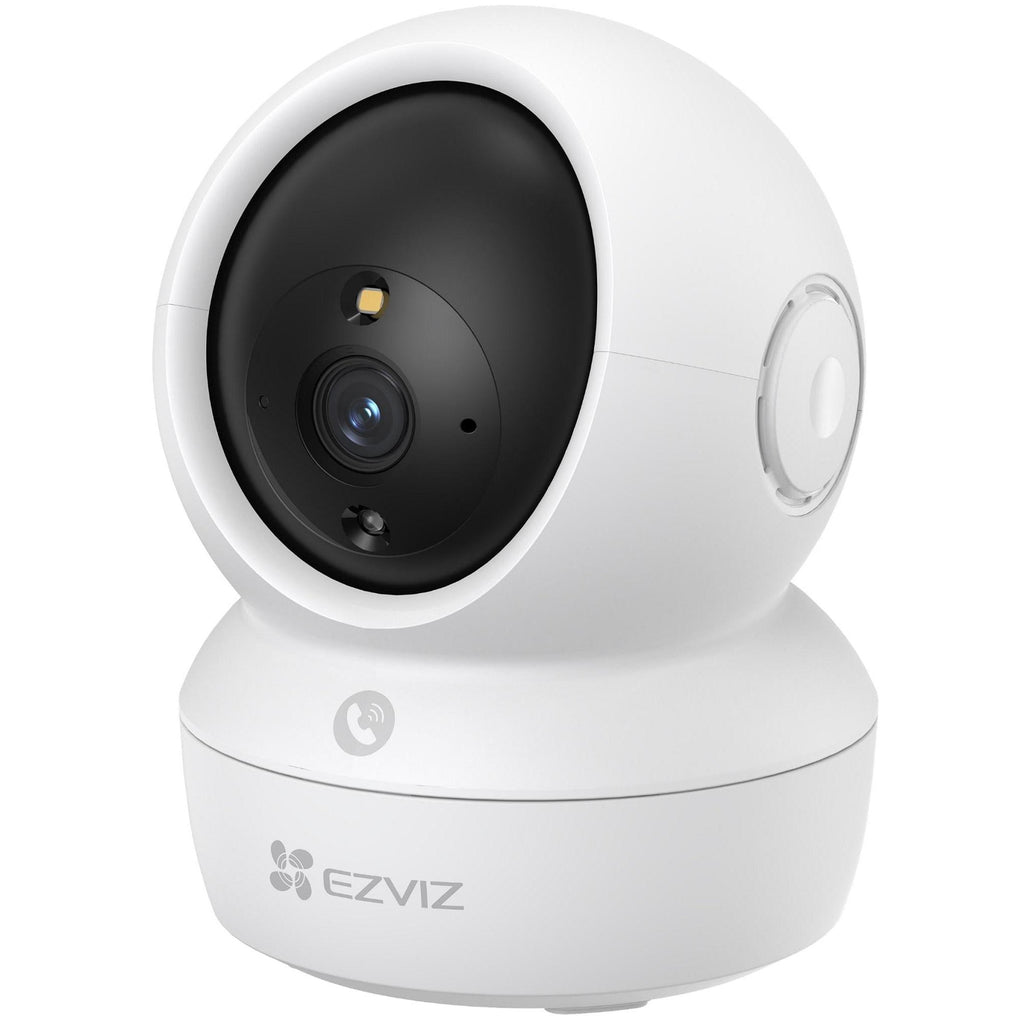

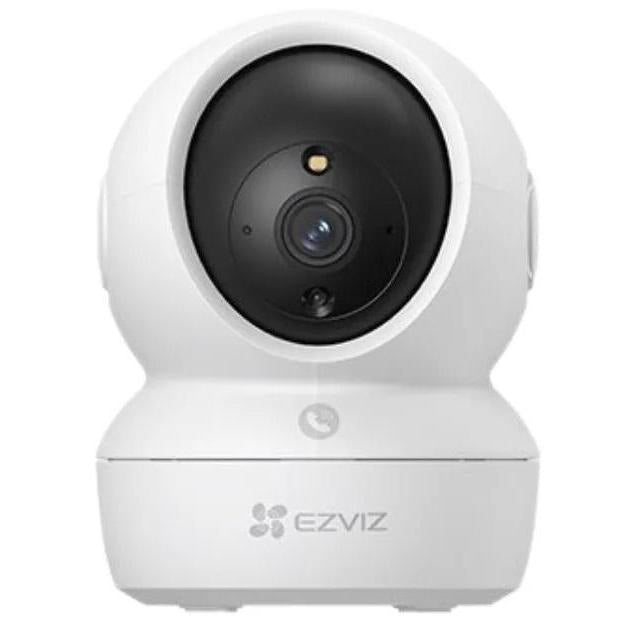

EZVIZ H6C PRO 2K - 3MP

EZVIZ H6C PRO 2K - 3MP - E-H693M

Type - C

H6C Pro 2K+

Pan & Tilt Smart Home Camera

Specifications

Model: CS-H6c-R105-1J4WF

Camera

Resolution: 4MP /2K+ Resolution

Image Sensor_   F1.6@1/3" Progressive Scan CMOS

Shutter Speed_ Self-Adaptive Shutter

Lens: 4mm, View Angle_ 90°(Diagonal), 80° (Horizontal), 43°(Vertical)

Lens Mount_ M12

Day & Night_ IR-Cut Filter with Auto-Switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression_ H.264/H.265

Video Bit Rate_ Adaptive bit rate.


Max. Resolution_ 2560 × 1440

Frame Rate_ Max:30fps; Self-Adaptive during Network Transmission

Network

Smart Alarm_ Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing_ AP Paring

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol_ EZVIZ Cloud Proprietary Protocol

Interface

Storage: Micro SD Card Slot (Max. 512G)

Power: TYPE-C

Wired Network_ RJ45 X 1 (10M/100M Self-Adaptive Ethernet Port)

Wi-Fi

Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n,

Frequency Range_ 2.4G: 2400 - 2483.5MHz 5G_ 5150MHz-5250MHz

Channel Bandwidth_ Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate_ 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7

Output Power(EIRP): 19 dBm

Antenna Gain_ 1.9 dBi

General

Operating Conditions_ -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply_  DC 5V/2A

Power Consumption_ 8W max

IR Range_ MAX. 10 meters(32.81ft)

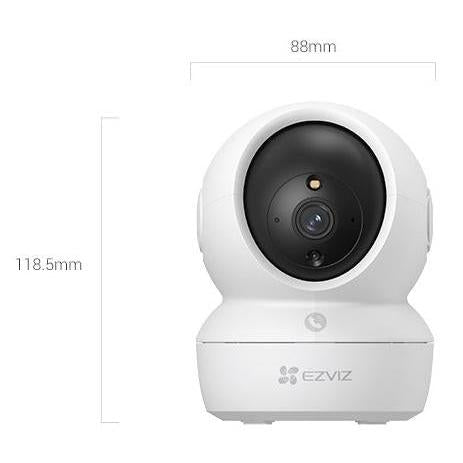

Dimensions:  88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions_ 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight_ 252g / 8.9oz

In The Box

Camera

Power Adapter

Power Cable

Drill Template

Mounting Plate

EZVIZ Screw Kit

Regulatory Information

Quick Start Guide

Certifications

Certifications: CE / UL / WEEE / REACH / RoHS / UKCA
