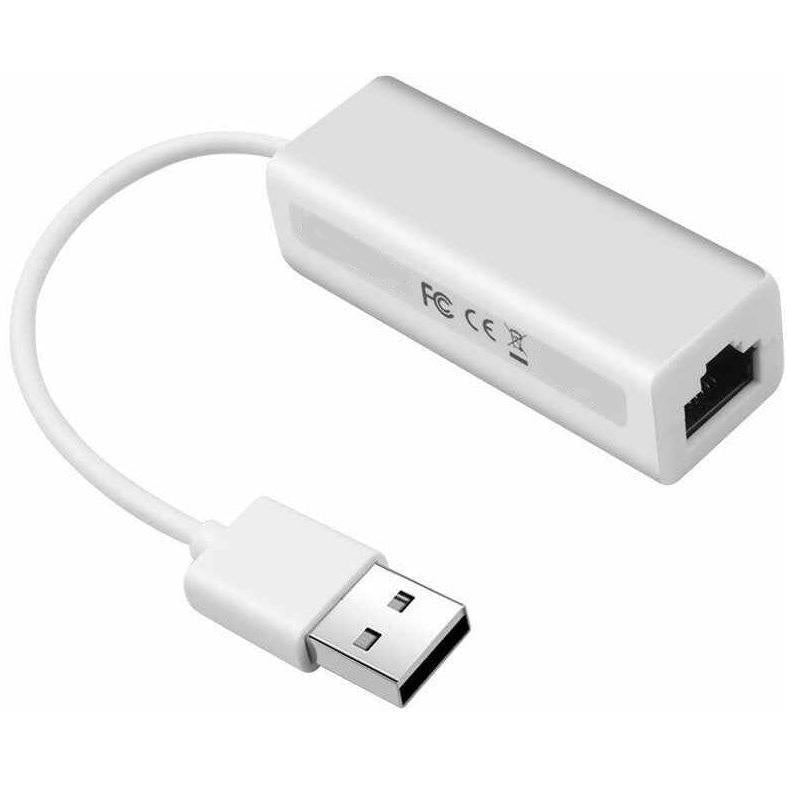

10/100 USB LAN

10/100 USB LAN - TXA041

Model number: TXA041

Chipset Realtek_ RTL8152B

Port number_ 1 x RJ45

Standard: IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.1P, IEEE 802.1Q VLAN tagging

IEEE 802.3az-2010 (EEE)

Network media_ 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate_ 10/100Mbps

Interface: USB2.0

Color: Black, white

LED Indicator_ 10/100Mbps(Link/Act)

Dimension: 70 x 32.5 x 17mm,USB cable_150mm

Support OS

Windows 10 8.1 8 32-bit 64-bit Plug in Play Native Driver No installation Needed

Windows 7 Vista XP Compatible

Environment

Operating Temperature_ 0 ?-55 ?

Relative Humidity_ 10%-90%(non-condensing)

Storage Temperature_ -0?-80?

Relative Humidity_ 5%-90%(non-condensing)

plug and play

Wake-On-LAN

Flow control

Other features

Auto-Negotiation with Next Page capability

Selective suspend

Remote wake-up

ECMA

Half Duplex and Full Duplex Mode

Feature:

Hardware

Integrated 10/100M transceiver

Auto-Negotiation with Next Page capability

Supports USB 2.0 and 1.1

Supports pair swap/polarity/skew correction

Crossover Detection & Auto-Correction

Supports Wake-On-LAN and ‘RealWoW!’ (Wake-On-WAN) Technology (see note 1)

Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts (see note 1)

XTAL-Less Wake-On-LAN

Supports 25MHz or 48MHz external clock (from oscillator or system clock source)

Supports power down/link down power saving

Transmit/Receive on-chip buffer support

Embedded OTP memory

Built-in linear regulator (LDO)

Supports Customizable LEDs

Controllable LED Blinking Frequency and Duty Cycle

Supports hardware CRC (Cyclic Redundancy Check) function

LAN disable with GPIO pin

Supports LPM (Link Power Management)

SPI Flash Interface

Supports link change wake up

Supports Microsoft WPD (Wake Packet Detection)

Supports 16-set 128-byte Wake-Up Frame pattern exact matching

Supports CDC-ECM

48-pin QFN ‘Green’ package

Software Offload

Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send

v1 and Large send v2) support

Supports Protocol Offload (ARP & NS)

https://www.micropointsa.co.za/assets/documents/txa041/datasheet/txa041.pdf
