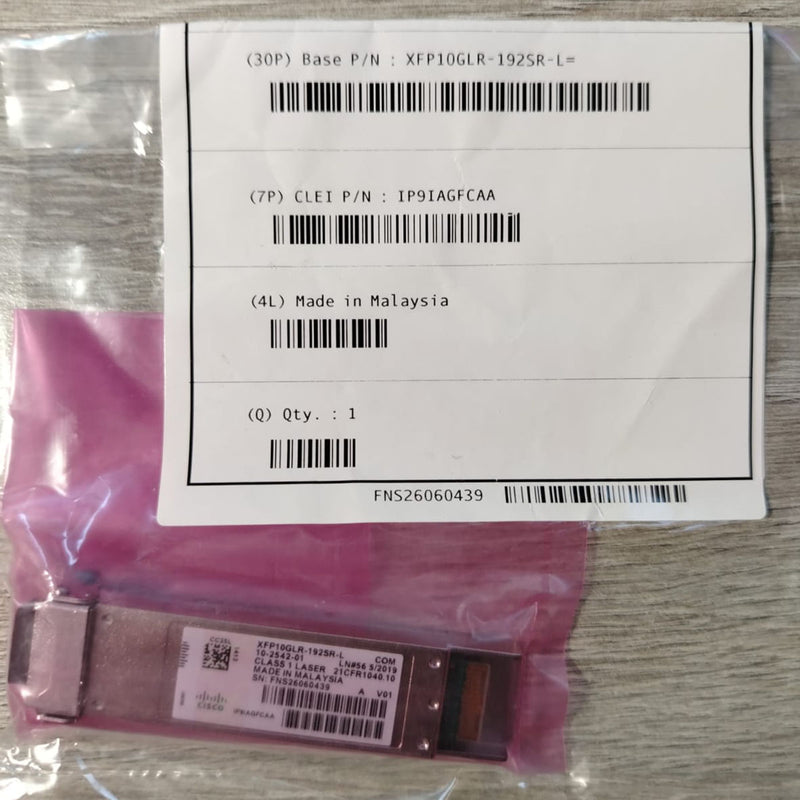

Cisco XFP10GLR-192SR-L 10-2542-01 | 10GBaseLR/LW Transceiver Module with Hologram
R 2,500.00
Free collection from Rosebank
In Store
If ordered before 10AM (excl. Weekends & Public holidays), can be delivered same day in the afternoon in JHB/PTA or tomorrow in CPT/DBN (main centres) or 3-5 days (regional areas or large/heavy packages). Collection from Asetos available same day subject to confirmation of availability.
Or pay from R208.33/month with Mobicred. Select Mobicred at checkout.
Return Policy (Online Purchases): 7-day return policy. Item must be unused and in original packaging. Contact us within 7 days of receipt to arrange a return. This policy applies to online orders only, not in-store purchases.
Product Description
The Cisco XFP10GLR-192SR-L is a 10 Gigabit Ethernet transceiver module designed for use in optical communications networks. It is part of Cisco's XFP (10 Gigabit Small Form-Factor Pluggable) transceiver module series. The XFP10GLR-192SR-L supports a data transfer rate of 10 Gbps and operates over a distance of up to 300 meters using multi-mode fiber optic cables. It uses the 850nm wavelength for transmitting and receiving data. This transceiver module is hot-swappable, meaning it can be inserted or removed from a compatible network device without powering down the system. It is compatible with various Cisco networking equipment, including switches, routers, and optical transport devices. The XFP10GLR-192SR-L is commonly used in data centers, enterprise networks, and service provider networks to provide high-speed connectivity and reliable performance for applications that require high bandwidth, such as video streaming, cloud computing, and data storage.
- Brand: Cisco
- Part Number: XFP10GLR-192SR-L
- Condition: Factory New Sealed
- Availability: In Stock
Main features of the Cisco XFP Module include:
- Supports 10GBASE Ethernet and OC-192/STM-64 data rates
- Hot-swappable input/output device plugs into a XFP port of a Cisco Systems® router to link the port with the network
- Provides flexibility of interface choice
- Supports “pay-as-you-populate” model
- Supports the digital optical monitoring capability
- Supports the Cisco quality identification (ID) feature that helps enable a Cisco switch or router to identify whether the module is a Cisco certified and tested XFP
- Supports optical interoperability with respective Cisco 10GBASE XENPAK and X2, and SFP+ modules on the same link
Cisco Multirate 10GBASE-LR, 10GBASE-LW and OC-192/STM-64 SR-1 XFP Module for SMF
The multirate XFP supports both 10GBASE-LR and 10GBASE-LW Ethernet applications and OC-192/STM-64 Short-Reach (SR-1) POS applications. Cisco offers both common and industrial temperature range products.
Specifications
- Product Number: XFP10GLR-192SR-L
- Description: Cisco Multirate 10GBASE-LR/-LW and OC-192/STM-64 SR-1 XFP Module for SMF, low power (1.5W)
- Connectors: Dual LC/PC connector
- Wavelength: 1310nm
- Cable Type: SMF
- Cable Distance:
- 10 km (10 Gigabit Ethernet)
- 2 km (OC-192/STM-64 SR-1)
- Transmit Power (dBm):
- Maximum: +0.5 @ 10GBASE-LR/-LW 1310-nm SMF, -1.0 @ OC-192/STM-64 SR-1 1310-nm SMF
- Minimum: -8.2 @ 10GBASE-LR/-LW 1310-nm SMF, -6.0 @ OC-192/STM-64 SR-1 1310-nm SMF
- Receive Power (dBm):
- Maximum: +0.5 @ 10GBASE-LR/-LW 1310-nm SMF, -1.0 @ OC-192/STM-64 SR-1 1310-nm SMF
- Minimum: -14.4 @ 10GBASE-LR/-LW 1310-nm SMF, -11.0 @ OC-192/STM-64 SR-1 1310-nm SMF
- Transmit Wavelength (nm):
- 10GBASE-LR/-LW 1310-nm SMF: 1260 to 1355
- OC-192/STM-64 SR-1 1310-nm SMF: 1290 to 1330
- Receive Wavelength (nm): 1260 to 1565
- Dimensions (L x W x H): 71 x 18.5 x 8.5 mm
- Operating temperature range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
- Storage temperature range: -40 to 85°C (-40 to 185°F)
- Power Consumption (W): 1.5
Platform support
Cisco XFP modules are supported on Cisco switches and routers.
- Cisco ASR 9000 A9K-2T20GE-E
- Cisco 7600 76-ES+XT-4TG3C
- Cisco ASR 9000 A9K-MPA-4X10GE
- Cisco 7600-ES20-10G3CXL
- Cisco CRS 14X10GBE-WL-XFP
- Cisco SCE8000-2X10GE-E
- Cisco ME-3600X-24CX-M
- Cisco SPA-OC192POS-XFP
- Cisco 7600 76-ES+XC-20G3CXL
- Cisco ASR 9000 A9K-MPA-2X10GE
- Cisco ASR 9000 A9K-2T20GE-B
- Cisco ASR 903 A900-IMA1X
- Cisco SPA-1X10GE-L-V2
- Cisco 7600-ES+4TG3CXL
- Cisco 7600 76-ES+XT-4TG3CXL
- Cisco ASR 9000 A9K-8T/4-L
- Cisco 7600-ES20-10G3C
- Cisco SCE8000-4X10GE-E
- Cisco ASR 9000 A9K-8T-E
- Cisco CRS 20X10GBE-WL-XFP
- Cisco 7600-ES+2TG3CXL
- Cisco ASR 9000 A9K-8T-L
- Cisco ASR 9000 A9K-4T-B
- Cisco 7600-ES+4TG3C
- Cisco ASR 9000 A9K-2T20GE-L
- Cisco 7600 76-ES+XC-40G3CXL
- Cisco 7600-ES+2TG3C
- Cisco CRS 4-10GBE-WL-XFP
- Cisco 7600 76-ES+T-2TG
- Cisco ASR 9000 A9K-4T-E
- Cisco ASR 9000 A9K-8T-B
- Cisco ASR 9000 A9K-4T-L
- Cisco 7600 76-ES+T-4TG
- Cisco 7600 76-ES+XT-2TG3C
- Cisco 7600 76-ES+XC-20G3C
- Cisco ASR 9000 A9K-8T/4-B
- Cisco 7600 76-ES+XC-40G3C
- Cisco CRS 8-10GBE-WL-XFP
- Cisco CRS 2-10GE-WL-FLEX
- Cisco ME4600-UMX-4x10GE
- Cisco 7600 76-ES+XT-2TG3CXL
- Cisco SPA-1X10GE-WL-V2
- Cisco ASR 9000 A9K-8T/4-E
